Spring hangers 支撐管架

‧管架負載最高可至50,000 KG
‧行程最長30”
‧負載荷重可做調整
‧可客製化製作

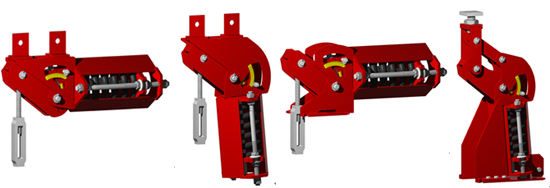

Spring hangers 定載型 支撐管架

CONSTANT EFFORT SUPPORTS



型號

外框及彈簧尺寸

行程預設狀態

HS Horizontal type
HD Horizontal type
VS Vertical type
VD Vertical type
VIS Vertical inverted type
VID Vertical inverted type
HBM Horizontal base mounted
HBMCS Horizontal base mounted compression seat
VBM Vertical base mounted
VBMCS Vertical base mounted compression seat
VIBM Vertical inverted base mounted
Vertical inverted tandem, VIT are available on request.

C5 –17
FRAME SIZE C5
SPRING SIZE 17

實際行程、總行程、行程方向(上或下)

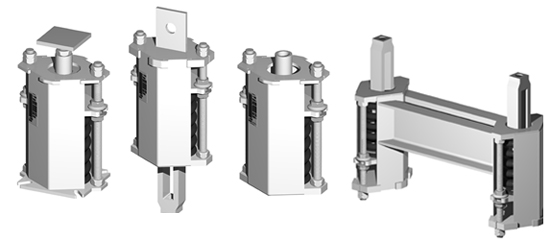

Spring hangers 震載型支撐管架

VARIABLE EFFORT SUPPORTS



型號

外框及彈簧尺寸

行程預設狀態

TS1, TS2, TS3 Top Suspended
TA Top Adjustable
ES Extended Support
DS Double Support
BM1, BM2, BM3, BM4 Base Mounted
VIT are available on request.

V1 1.38”V4 8.27”

V2 2.76”V5 11.03”

V3 5.52”

166 possible spring sizes including hot load and cold load condition

行程方向(上或下)

垂直位移、

熱膨脹考量
