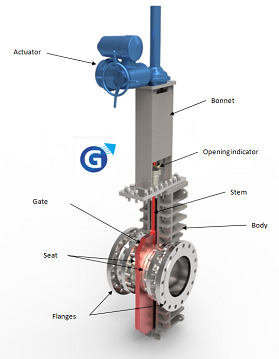

Through conduit gate valves閘閥

Functions

Slide valve

-On/off valve or flow control valve：in-line installation

Operating principle

Slide valve

-Shutter：slide Shutter

-Sealing：With stuffing box (repackable in service)

-Stellited discs and seats

Removable body bottom

Fabrication

Slide valve

-Construction：

materials Carbon Steel (CS), Stainless Steel (SS), Duplex & Super Duplex, Inconel & Incoloy®, Titanium,

-Construction Methods：

Fabricated (Welded), Cast

Uses

Slide valve

-Service conditions：

High temperature, Low temperature, Abrasion, Corrosion, Low acoustic signature

-Types of fluids：

Liquids, Liquids with solid particles, Gas, Powder and powdery media, High viscosity fluids

-Applications：

Plastics and polymers, Petrochemicals

DN 50 to DN 1200

2" to 48"

PN 2.5 to PN 50

75 to 300 Lbs

Functions

Gate Valve

On-off valve :

in-line, on tank or reactor

Operating principle

Gate Valve

-Shutter : double wedge disc

-Sealing : With stuffing box (repackable in service)

-Full bore

Fabrication

Gate Valve

-Construction materials :

Carbon Steel (CS), Stainless Steel (SS), Duplex & Super Duplex, Inconel & Incoloy®, Titanium, Zirconium, Uranus® B6, Tantalum, Nickel, Hastelloy®, Monel

-Construction Methods : Fabricated (Welded), Cast

Uses

Gate Valve

-Service conditions :

High pressure, High temperature, Low temperature, Abrasion, Corrosion, Vacuum

-Types of fluids :

Liquids, Liquids with solid particles, Gas, Powder and powdery media, High viscosity -fluids
-Applications :

Plastics and polymers, General chemicals, Petrochemicals, Nuclear and Naval / Submarine, Cryogenic service

DN 10 to DN 900

3/8" to 36"

PN 10 to PN 250

150 to 1500 Lbs
